Other    BATTERY SERIES

SPECIFICATIONS Material Connector - Female Terninal BRASS Operating Temperature Range -40°C ~ +120°C Voltage Drop 5mV/A Isolation Resistance - Dielectric Resistance - Applicable Wire Size - Maximum Electric Current 78A

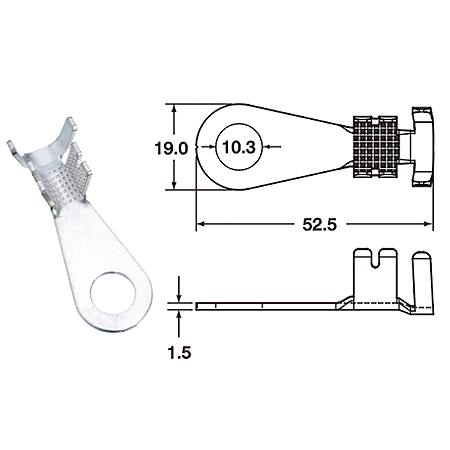

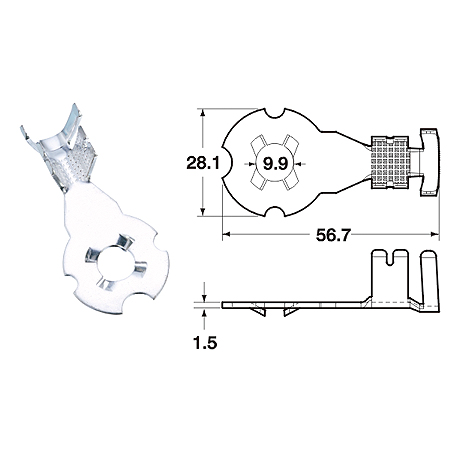

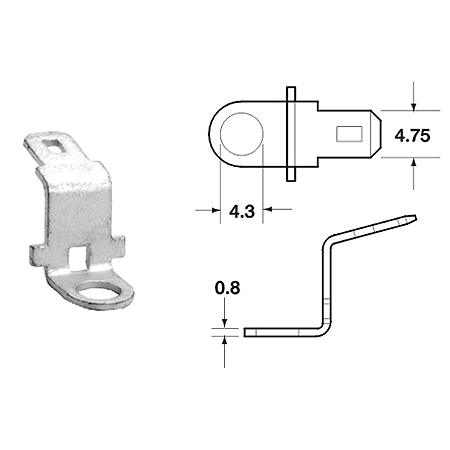

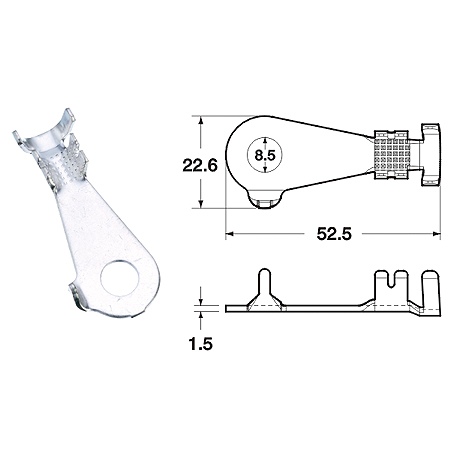

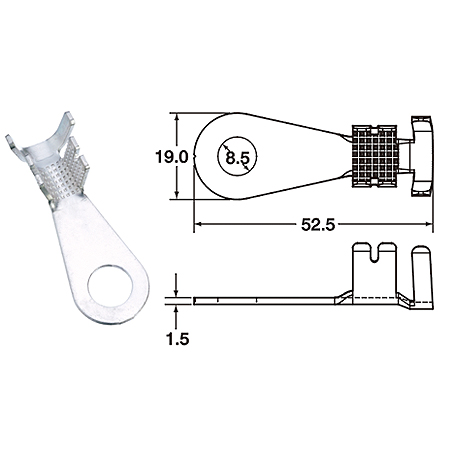

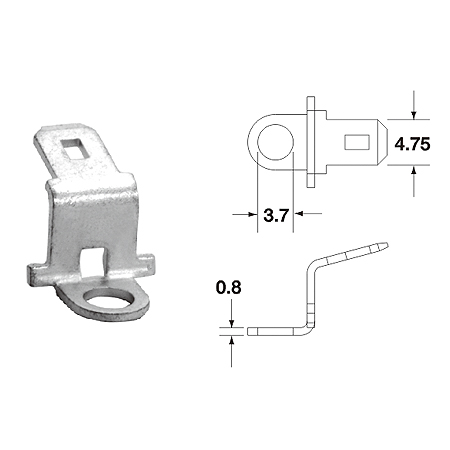

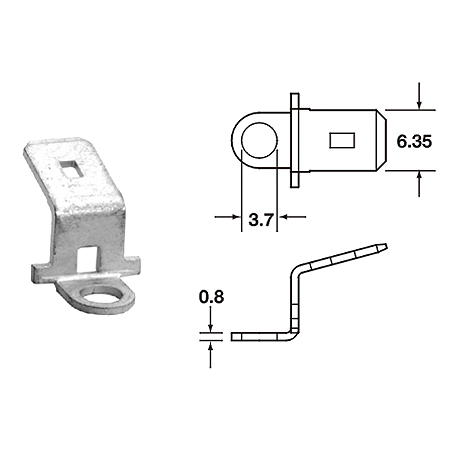

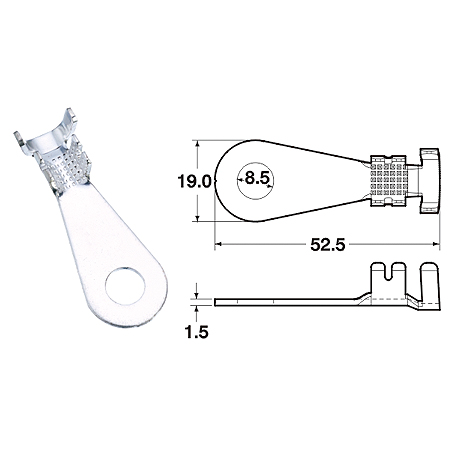

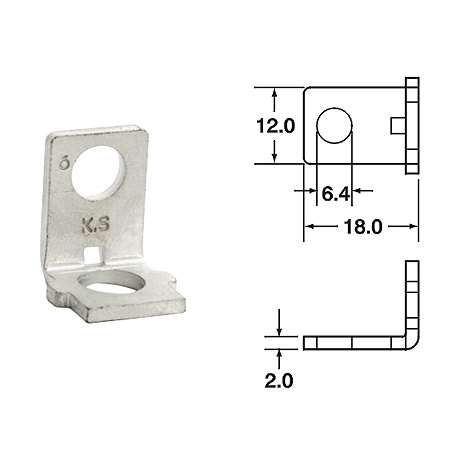

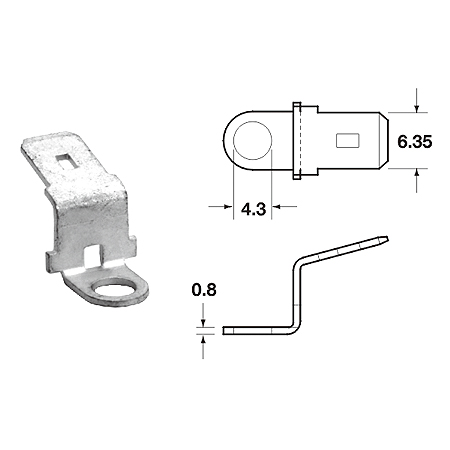

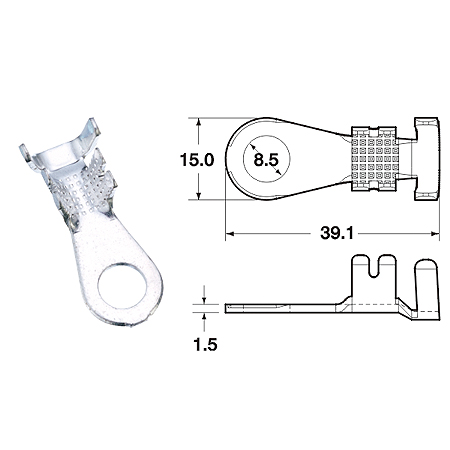

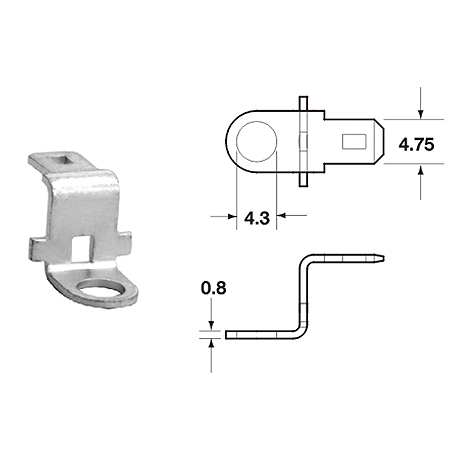

TERMINAL ITEM NO. WIRE RANGE MATERIAL PLATINGS Q'TY REEL APPLICATOR DIES A.W.G. mm2 1000A0021L - 13/19 Brass None 100 CDM-98033 CDT-98033 1005A0021L - 13/19 Brass None 100 CDM-98033 CDT-98033 ITEM NO. WIRE RANGE MATERIAL PLATINGS Q'TY REEL APPLICATOR DIES A.W.G. mm2 1000A0026L - 13/19 Brass None 100 CDM-98034 CDT-98034 1005A0026L - 13/19 Brass Tin 100 CDM-98034 CDT-98034 ITEM NO. WIRE RANGE MATERIAL PLATINGS Q'TY REEL APPLICATOR DIES A.W.G. mm2 1000A0032L - 32 Brass Tin 100 CDM-98035 CDT-98035 1005A0032L - 32 Brass Tin 100 CDM-98035 CDT-98035 ITEM NO. WIRE RANGE MATERIAL PLATINGS Q'TY REEL APPLICATOR DIES A.W.G. mm2 1000A0036L - 13/19 Brass None 100 CDM-98036 CDT-98036 1005A0036L - 13/19 Brass Tin 100 CDM-98036 CDT-98036 ITEM NO. WIRE RANGE MATERIAL PLATINGS Q'TY REEL APPLICATOR DIES A.W.G. mm2 1000A0037L - 32 Brass None 100 CDM-98037 CDT-98037 1005A0037L - 32 Brass Tin 100 CDM-98037 CDT-98037 ITEM NO. WIRE RANGE MATERIAL PLATINGS Q'TY REEL APPLICATOR DIES A.W.G. mm2 1000A0041L - 13/19 Brass None 100 CDM-98038 CDT-98038 1005A0041L - 13/19 Brass Tin 100 CDM-98038 CDT-98038 ITEM NO. WIRE RANGE MATERIAL PLATINGS Q'TY REEL APPLICATOR DIES A.W.G. mm2 1000A0042L - 32 Brass None 100 CDM-98039 CDT-98039 1005A0042L - 32 Brass Tin 100 CDM-98039 CDT-98039 ITEM NO. WIRE RANGE MATERIAL PLATINGS Q'TY REEL APPLICATOR DIES A.W.G. mm2 1000A0049L - - Brass None 100 CDM-98040 CDT-98040 1005A0049L - - Brass Tin 100 CDM-98040 CDT-98040 ITEM NO. WIRE RANGE MATERIAL PLATINGS Q'TY REEL APPLICATOR DIES A.W.G. mm2 1000A0054L - - Brass None 100 - - 1005A0054L - - Brass Tin 100 - - ITEM NO. WIRE RANGE MATERIAL PLATINGS Q'TY REEL APPLICATOR DIES A.W.G. mm2 1000A0059L - - Brass None 100 - - 1005A0059L - - Brass Tin 100 - - ITEM NO. WIRE RANGE MATERIAL PLATINGS Q'TY REEL APPLICATOR DIES A.W.G. mm2 1000A0064L - - Brass None 100 - - 1005A0064L - - Brass Tin 100 - - ITEM NO. WIRE RANGE MATERIAL PLATINGS Q'TY REEL APPLICATOR DIES A.W.G. mm2 1000A0069L - - Brass None 100 - - 1005A0069L - - Brass Tin 100 - - ITEM NO. WIRE RANGE MATERIAL PLATINGS Q'TY REEL APPLICATOR DIES A.W.G. mm2 1000A0074L - - Brass None 100 - - 1005A0074L - - Brass Tin 100 - - ITEM NO. WIRE RANGE MATERIAL PLATINGS Q'TY REEL APPLICATOR DIES A.W.G. mm2 1000A0079L - - Brass None 100 - - 1005A0079L - - Brass Tin 100 - - ITEM NO. WIRE RANGE MATERIAL PLATINGS Q'TY REEL APPLICATOR DIES A.W.G. mm2 1000A0084L - - Brass None 100 - - 1005A0084L - - Brass Tin 100 - -
